Integration of the Enphase microinverter with Trydan

The Enphase microinverter can be integrated with the e-Charger Trydan via a WiFi connection. Below, we specify the steps to follow to carry out this integration. (These steps must be done on the Master microinverter).

IMPORTANT:

The use of Wi-Fi repeaters or mesh networks may affect the proper operation of the system. We recommend using a stable and direct Wi-Fi network to ensure an optimal connection between the charger and the inverter.
The charger and the V2C app must be up to date.
The inverter and the charger must be on the same network segment.

Steps for connecting to the Enphase microinverter

1. Log in to the V2C Cloud mobile app.
2. Select the charger.

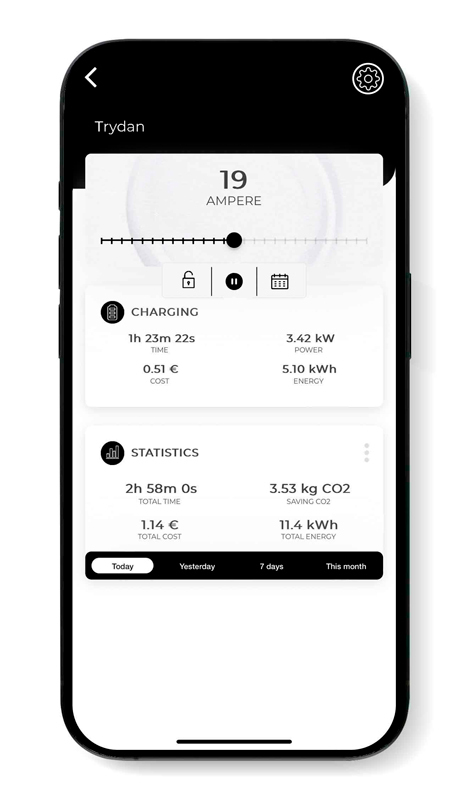

3. Go to the charger settings by tapping the icon in the top right corner.

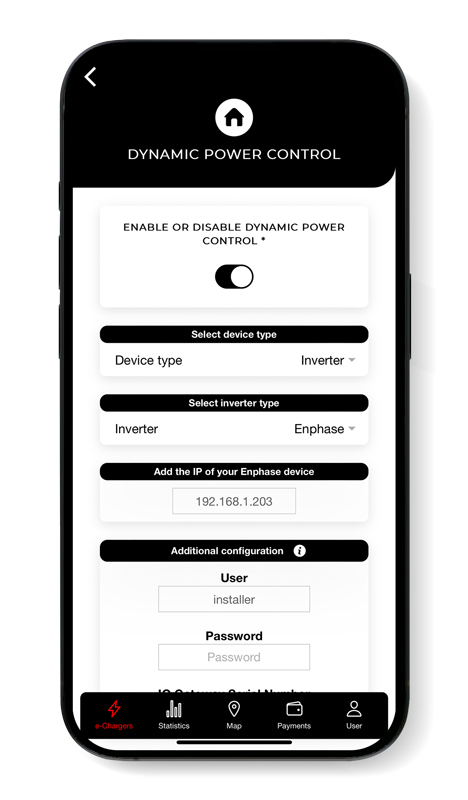

4. Select the “Dynamic Power Control” section.
5. Enable dynamic control and fill in the fields.
· In “Username” and “Password”, enter the credentials of your Enphase account.
· In “IP Address”, enter the IP assigned to the Envoy.
· In “Gateway Number”, enter the one assigned to the Envoy.

STEP 1

STEP 2

STEP 3

STEP 4

STEP 5

How to find the IQ Gateway serial number

1. Enter the following URL in your browser: https://enlighten.enphaseenergy.com/. Then, log in with your email and password.
2. Go to the “System Board” section, located in the top right corner.
3. Copy the serial number from the Gateway (SERIAL NO) section.
